FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment

Brand Name : Fuchuan

Model Number : FC-500B-4

Certification : CE

Place of Origin : China JiangSu

MOQ : 1set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 20SET/PER MONTH

Delivery Time : 45days

Packaging Details : normal packing

color : sky blue

fit for bobbin : Diameter 500mm

for wire : bare copper wire/silver jacketed wire/enamelled wire

wire dia : 0.08-0.45mm

wire : core wire double twist

magnetic powder clutch : 1.2kgf

Contact Now

FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment

Quick Details:

Series for Model B normal wire high speed bunching machine and double twist bunching machine.

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Characteristics:

Japanese Technology ,Product in China.

With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.

Specifications:

Equipment models FC-500B-4
Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.08-φ0.45
Stranding section area (mm²) 0.05-2.5
Core wire single wire dia φ0.5-φ1.5
Core wire stranding outer dia φ1.0-φ3.5
Pitch(mm) 6.3-52.3(24zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width φ500*φ56*375
Max rotating speed 3000(6000twist)
Main motor power 5.5KW
Inverter power 5.5KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 1.2kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable

Other Information


FOB SHANGHAI
Payment

TT, L/C
Delivery

FOB Shanghai/Ningbo
Origin

China
Minimum Order

1 set
Package
with container

Product Tags:

cable twisting machine



wire twist machine



Silver Jacketed Wire Bunching Machine


Cheap FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment for sale

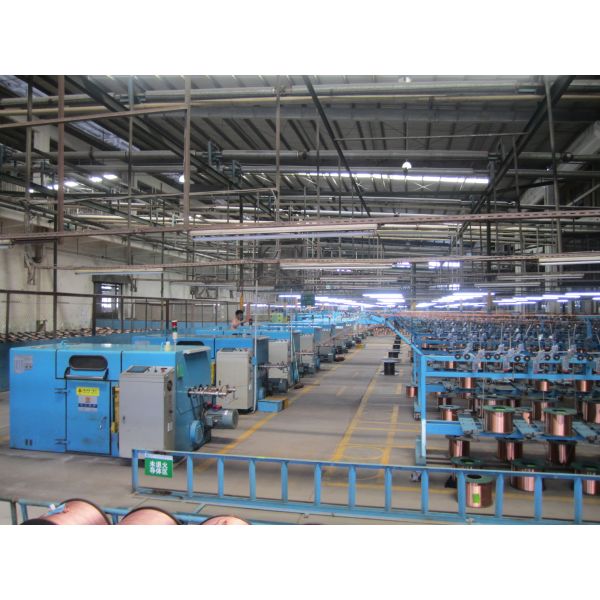

FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment Images
